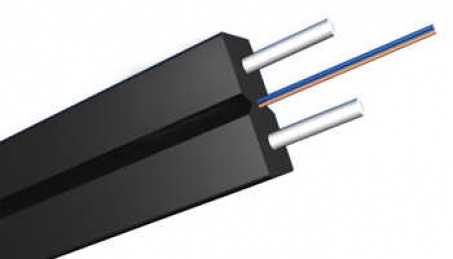

Оптический кабель LanKore FTTH-004-SM/ADSS

Код товара:

0 отзывов

Сравнить

Доставка и оплата

Основные характеристики:

ХАРАКТЕРИСТИКИ
ОПИСАНИЕ
СОПУТСТВУЮЩИЕ ТОВАРЫ
АНАЛОГИ

Технические характеристики "Оптический кабель LanKore FTTH-004-SM/ADSS "

LanKore-FTTH-004-SM/ADSS is a distributive «last mile cable», for work in FTTH networks. The cable contains optical fibers that meet the ITU-T G.652D recommendations (referred to optical fibers with reduced losses in the bends that is used for FTTH application). Outer sheath is made of Low Smoke Zero Halogen material (LSZH). Resistance to the longitudinal strain is provided by two dielectric strength members.

Structure:

Simple structure, light weight, high passability;
Modern design, which simplifies installation and connection;
Two parallel rods ensure good crush performance of the cable;
Handy bend radius;
Low smoke, zero halogen and flame retardant sheath.

Specifications:

Cable specifications:
Type	FTTH-xxxsm/ADSS
Number of fibers	4
Strength member material	two aramid rods
Strength member diameter, mm	0,5
Sheath material	LSZH PE
Cable dimensions	2,0 х 3,0
Cable weight, kg/km	8
Max tensile load	60/100
Minimum bend radius	15
- operating	-50 C to +70 C
