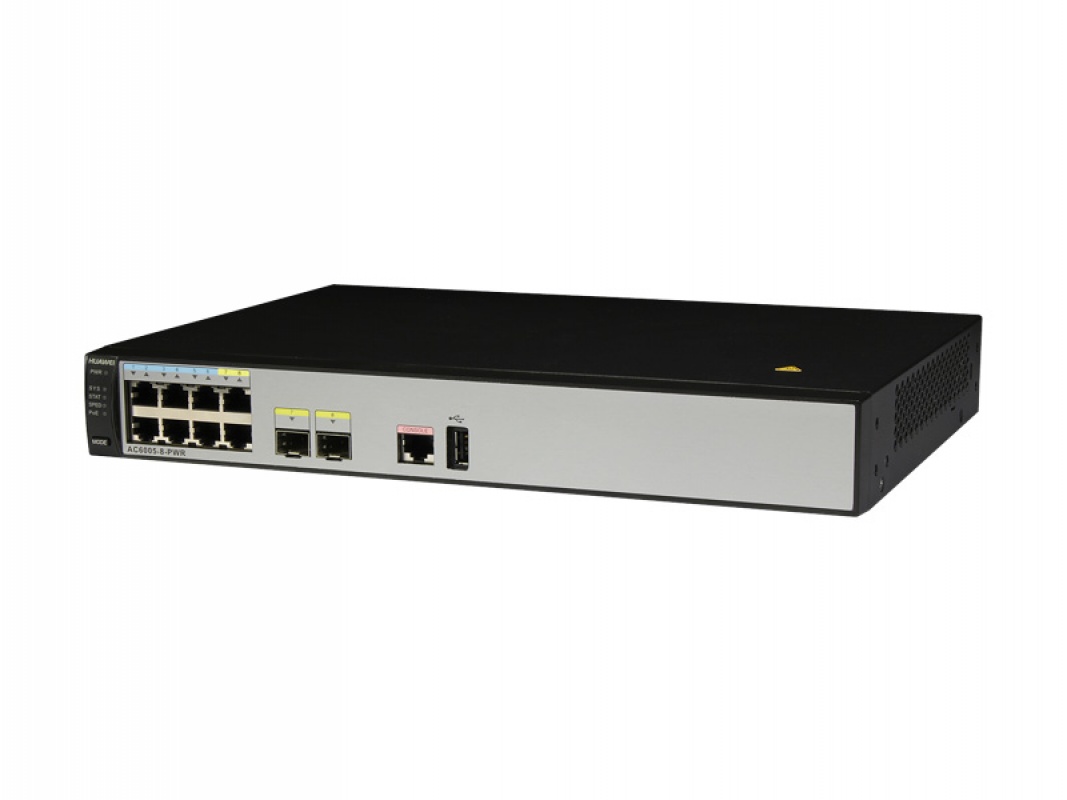

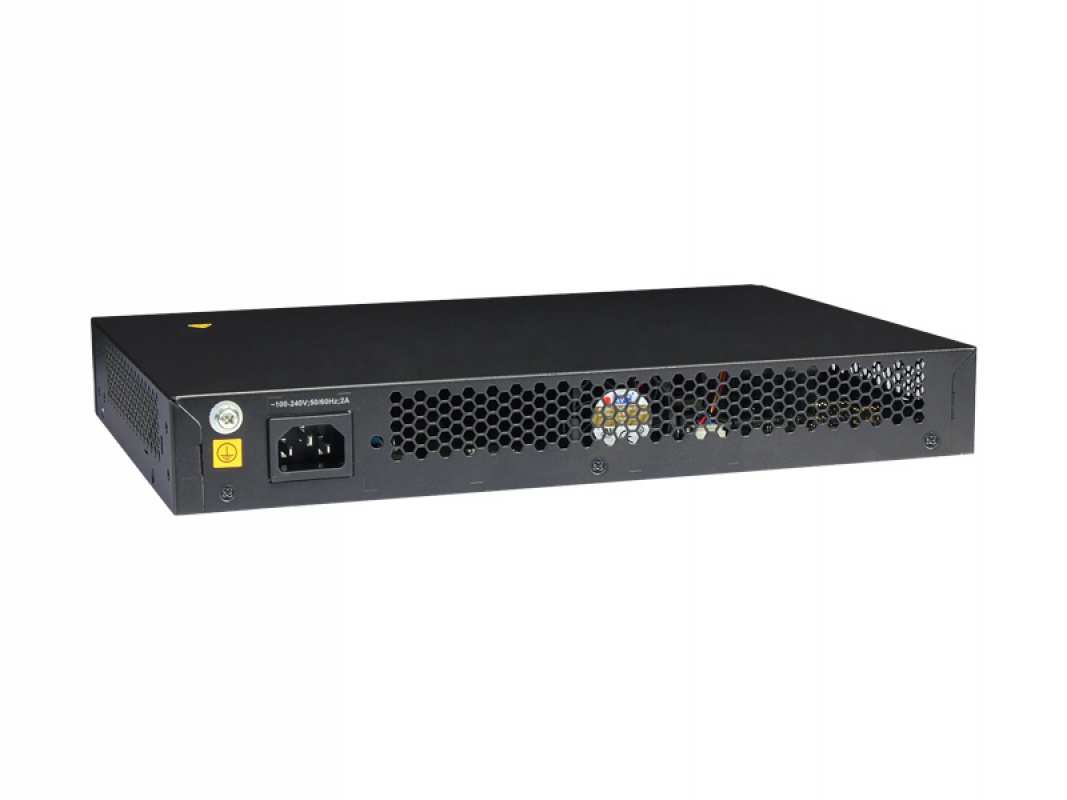

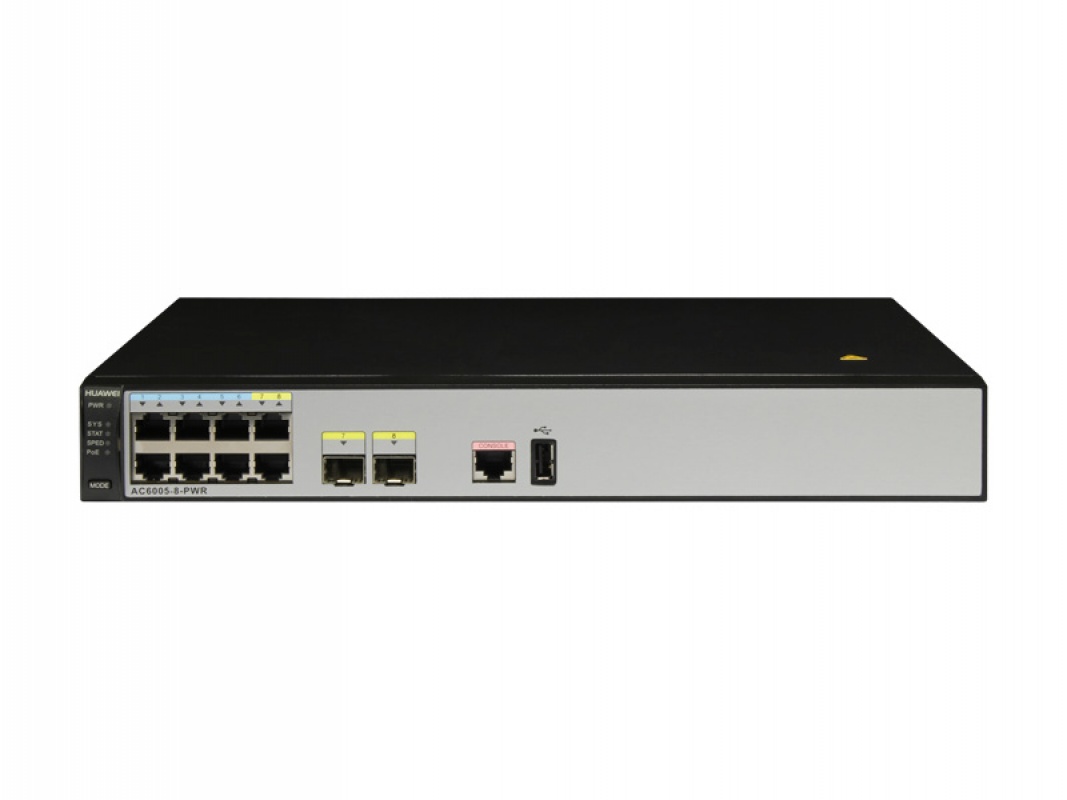

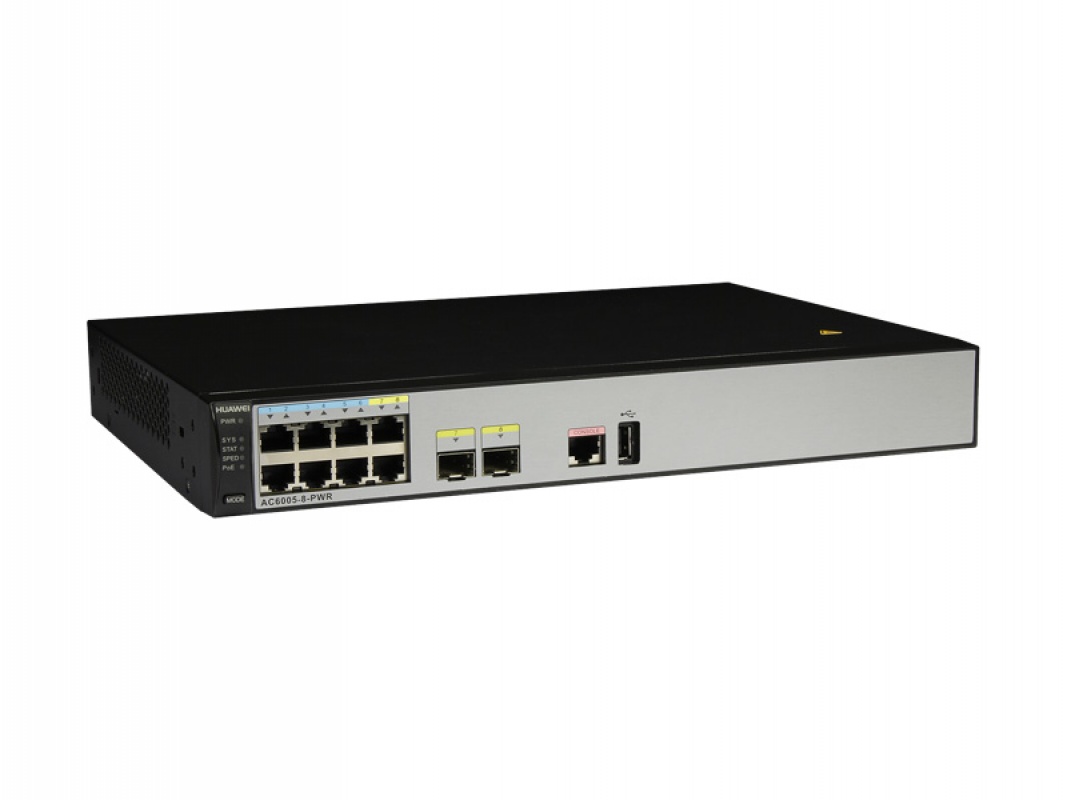

Контроллер доступа Huawei AC6005-8-PWR-8AP

 Порты

  PoE 8-портовый PoE или 4-портовый PoE+

  Управление и обслуживание

• Device management and statistics
  • Command line management based on SSH/Telnet/Console
  • SNMPv2/v3
  • Web management
  • Standard MIBs and Huawei proprietary MIBs
  • Syslog
  • AP and station statistics
  • Alarms with different severity levels
  Centralized AP configuration and management
  • Group-based AP management
  • Centralized version management and automatic version file load
  • Built-in AP type and customized AP addition
  Graphic AP deployment and topology displays
  • AP LLDP
  • AC LLDP

  WLAN

• AP-AC networking
  • AP-AC Layer 2/3 networking
  • AC Layer 2 forwarding or Layer 3 routing
  • NAT traversal (APs are deployed on a private network and A Cs are deployed on the public network)
  Data forwarding
  • AP-AC CAPWAP tunnel and DTLS encryption
  • VAP-based forwarding (centralized forwarding and local forwarding)
  • Centralized authentication and local forwarding
  VLAN deployment
  • Mapping between SSIDs and VLANs, and VLAN assignment based on SSIDs or physical locations
  WDS deployment
  • Point-to-point and point-to-multipoint
  • Automatic topology detection and loop prevention (STP)
  AC active/standby mode
  • Dual-linked active and standby ACs with Virtual Router Redundancy Pr otocol (VRRP)
  • N:1 active/standby deployment

 Беспроводное управление

• Extended Service Set (ESS)-based service management
  • ESS-based SSID hiding and AP isolation at Layer 2
  • Maximum number of access users and associated aging time settings in an ESS
  • ESSs to service VLANs mapping
  • ESS associations with a security profile or a QoS profile
  • Internet Group Management Protocol (IGMP) support for APs in an ESS
  Wireless roaming
  • Layer 2 roaming
  • Inter-VLAN Layer 3 roaming
  • Pairwise Master Key (PMK) caching, rapid key negotiation
  • Identity check on users who r equest to reassociate with the AC to reject reassociation requests of
  unauthorized users
  • Delayed clearing of user information after a user goes offline so that the user can rapidly go online again
  DHCP service control
  • Built-in DHCP server
  • Support for DHCP snooping on APs
  • Support for DHCP relay and DHCP snooping on A C
  Multicast service management
  • IGMP snooping
  • IGMP proxy

  Беспроводная безопасность и аутентификация

• Authentication and encryption
  • OPEN/WEP/PSK/WPA(2) + 802.1x
  • WEP/TKIP/AES(CCMP)
  • WAPI
  User authentication and control
  • MAC address authentication, Portal authentication, and 802.1x authentication
  • MAC + Portal authentication
  • PEAP/TLS/MD5/CHAP
  Security and defense
  • ACLs based on interface, users, and user gr oups
  • Isolation based on VAPs and user groups
  • IP source guard for STAs
  • Detection of unauthorized APs and alarm function
  • User blacklist and whitelist
  AAA
  • Local authentication/local accounts (MAC addresses and accounts)
  • RADIUS authentication
  • Multiple authentication servers

  Контроль беспроводного QoS

• Flow control
  • VAP-based rate limiting
  • User-group-based rate limiting
  • Rate limiting for a specified user
  • Dynamic traffic control, preventing resources from being wasted by STAs
  Priority mapping and scheduling
  • Mapping QoS settings of encapsulated data packets to 802.1p and DSCP fields of outer tunnel packets
  • Mapping between DSCP, 802.1p, and 802.11e

  Рабочая температура

  Температура хранения

   -5°C до 50°C

   -40°C до 70°C

  Входное напряжение

  100V to 240V AC, 50 Hz/60 Hz

  Размеры

  320 x 233,6 x 43,6 мм
